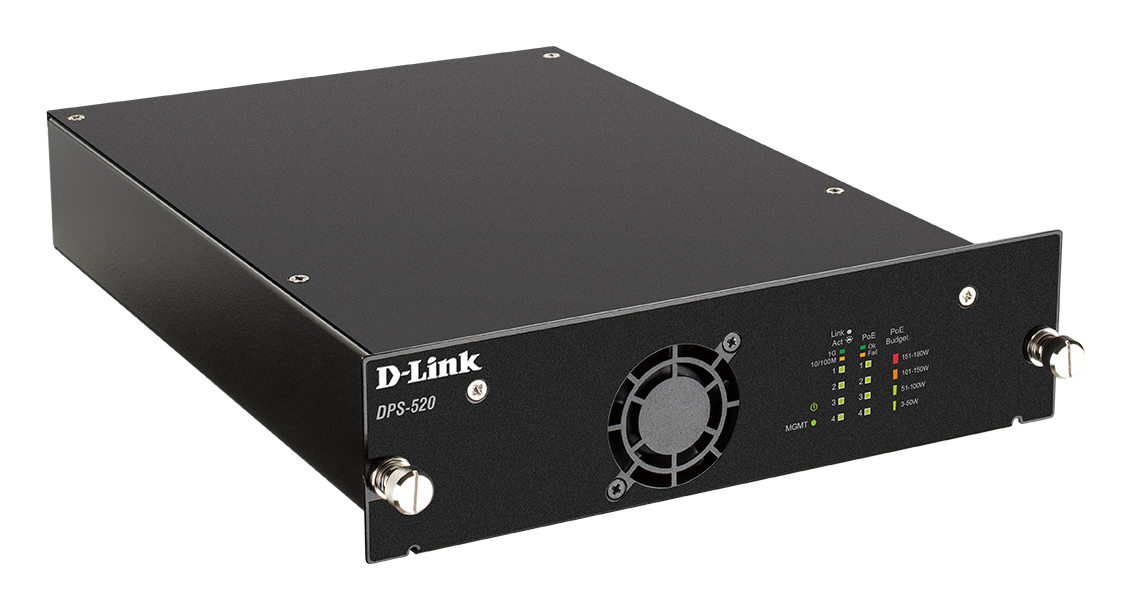

D-Link Redundant Power Supply for DGS-1520-28 and DGS-1520-52

Product description

The DPS-520 provides power supply redundancy and resiliency for Power over Ethernet (PoE). It ensures continuous device activity and offers protection against device power supply failures by providing seamless failover for D-Link switches such as the DGS-1520 series.

Cost-effective solution that supports up to four switches
180W total power budget
Auto Discovery: automatically discover powered device (PD) to immediately deliver power
RPS Port Priority: allows network administrator to define RPS failover policy
Status Reporting: status information can be monitored through any web browser, allowing administrators to backup a failed switch.

High Flexibility and Availability
The DPS-520 PoE Redundant Power Supply system offers stable, reliable safety features and protection to you network. With a 180W power budget and 4 ports with PoE power budget, it can actively back-up four compatible D-Link switches while using PD power connection box, reducing the redundant power cost per device. In the event of a power supply failure, the redundant power supply unit is immediately triggered, allowing the LAN switch and its connected devices to remain operational.

Product Description PoE Redundant Power Supply
Output Power 180 watts
Input Voltage Range 90 to 264 V AC
Input Frequency 47 to 63 Hz
Operating Temperature 0 to 50°C
Storage Temperature -40 to 70°C
Operating Humidity 10 to 90% RH
Storage Humidity 5% to 95% RH
MTBF 53,858 hours
Dimensions 196 x 257 x 52 mm Panel size: 196 x 52 mm
Weight 1.15 kg
Max Input Current N/A
Max Inrush Current N/A
Efficiency N/A
