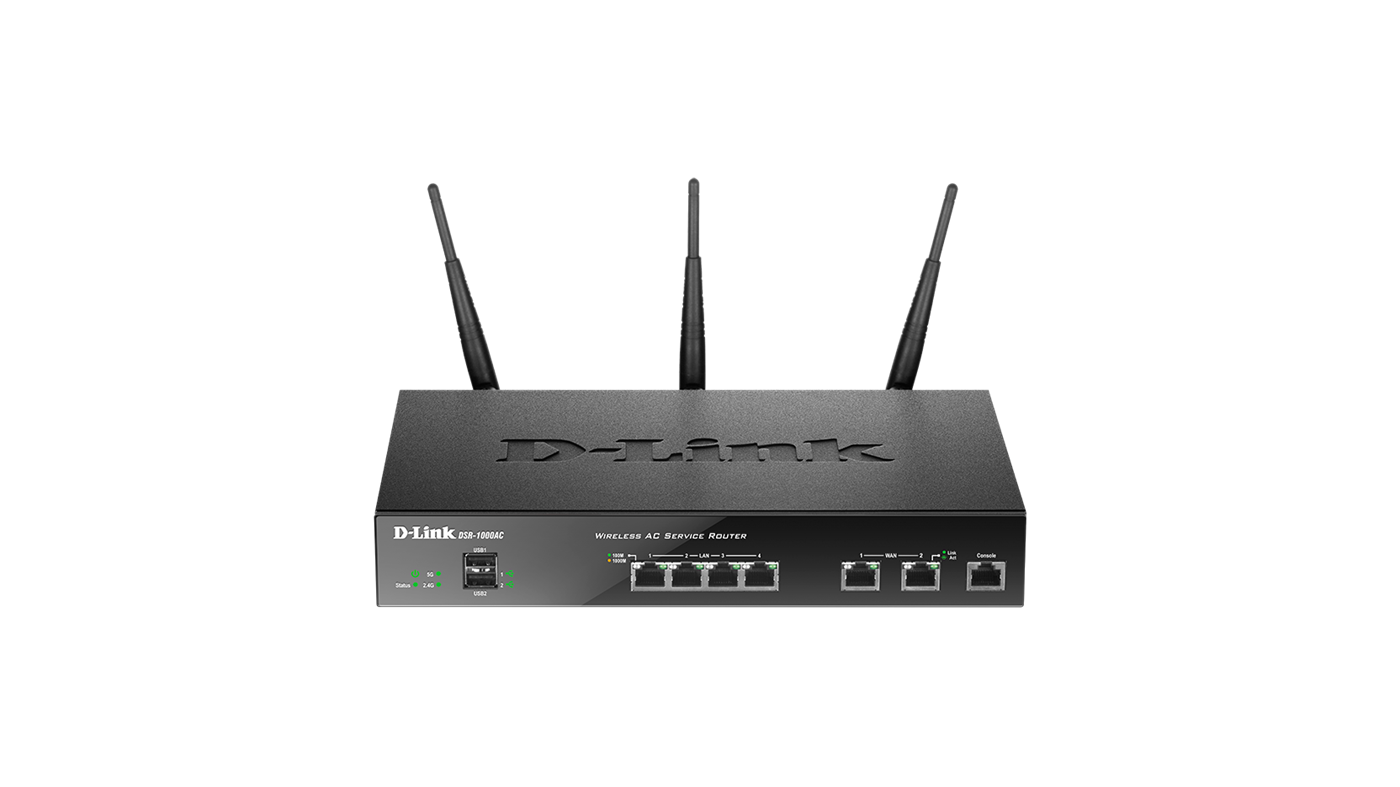

D-Link DSR-1000AC Wireless AC Unified Services VPN Router

Product description

General

Ethernet Interface

* 2 10/100/1000 Mbps WAN Ports
* 4 10/100/1000 Mbps LAN Ports

Wireless Interface

* 802.11 ac/a/b/g/n (Concurrent dual band)
* 3 Detachable 2 dBi Omni-Directional Antennas

USB 2.0 Port :    2

Console Port:     RJ-45

Firewall Throughput:     950 Mbps

VPN Throughput (3DES):    250 Mbps

Concurrent Sessions:     100,000

New Sessions (per second):     1000

Firewall Policies:     600


Internet Connection Type:

* Static/Dynamic IP
* PPPoE/L2TP/PPTP
* Multiple PPPoE

Firewall System:
* Static Route
* Dynamic Route
* RIP v1/v2, OSPF, OSPFv3
* Dynamic DNS
* Inter-VLAN Route
* NAT, PAT
* Web Content Filtering
* Static URL, Keywords, Dynamic WCF (License is required)
* Intrusion Prevention System (IPS)
* Signature Package Included in Firmware
* Authentication
* Internal User Database, Radius, POP3, LDAP, AD, NT Domain

Networking:

* DHCP Server/Client
* DHCP Relay
* IEEE 802.11q VLAN
* VLAN (port-based)
* IP Multicast
* IGMP Proxy, IGMP Snooping
* IPv6
* Route Failover
*Outbound Load Balancing
*3G/4G5 Redundancy via Optional USB Modem1


Wireless:

* Multiple Service Set Identifier (SSID)
* Service Set Identifier (SSID) to VLAN Mapping
* Standard
* 802.11 ac/a/b/g/n
* Wireless Security
* Wired Equivalent Privacy (WEP)
* Wi-Fi Protect Setup (WPS)
* Wi-Fi Protected Access – Personal (WPA-PSK)
* Wi-Fi Protected Access – Enterprise (WPA-EAP)
* Wi-Fi Protected Access version 2 – Personal (WPA-PSK)
*  Wi-Fi Protected Access version 2 – Enterprise (WPA-EAP)


Virtual Private Network (VPN):

VPN Tunnels -  155
IPSec Tunnels -  70
SSL VPN Tunnels -  20
PPTP/L2TP Tunnels - 25
GRE -     20
OpenVPN Tunnels -        20
Encryption Methods -        DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL
SSL Encryption Methods -    RC4-128, 3DES, AES
IPSec/PPTP/L2TP/OpenVPN Server
IPSec NAT Traversal
Dead Peer Detection
IP Encapsulating Security Payload (ESP)
IP Authentication Header (AH)
VPN Tunnel Keep Alive
Hub and Spoke

Bandwidth Management
* Maximum Bandwidth Control
*  Priority Bandwidth Control
       Port-based QoS
       3 Classes

System Management

* Web-based User Interface
* Command Line
* SNMP v1, v2c, v3


Power Supply

* External Power Supply Unit
* DC 12 V/3 A

Max. Power Consumption:   23.1 W


Dimensions (L x W x H):  180 x 280 x 44 mm (7.09 x 11.02 x 1.73 inches)


Operation Temperature:     0 to 40 °C (32 to 104 °F)


Storage Temperature:     -20 to 70 °C (-4 to 158 °F)

Operation Humidity:    5% to 95% non-condensing

EMI/EMC:    FCC Class B, CE Class B, RCM, IC, VCCI

Safety:    cUL, LVD (EN60950-1)

3rd Party Certification:     IPv6 Ready, Wi-Fi, VPNC AES Interop, VPNC Basic Interop

MTBF:     360,000 hours
