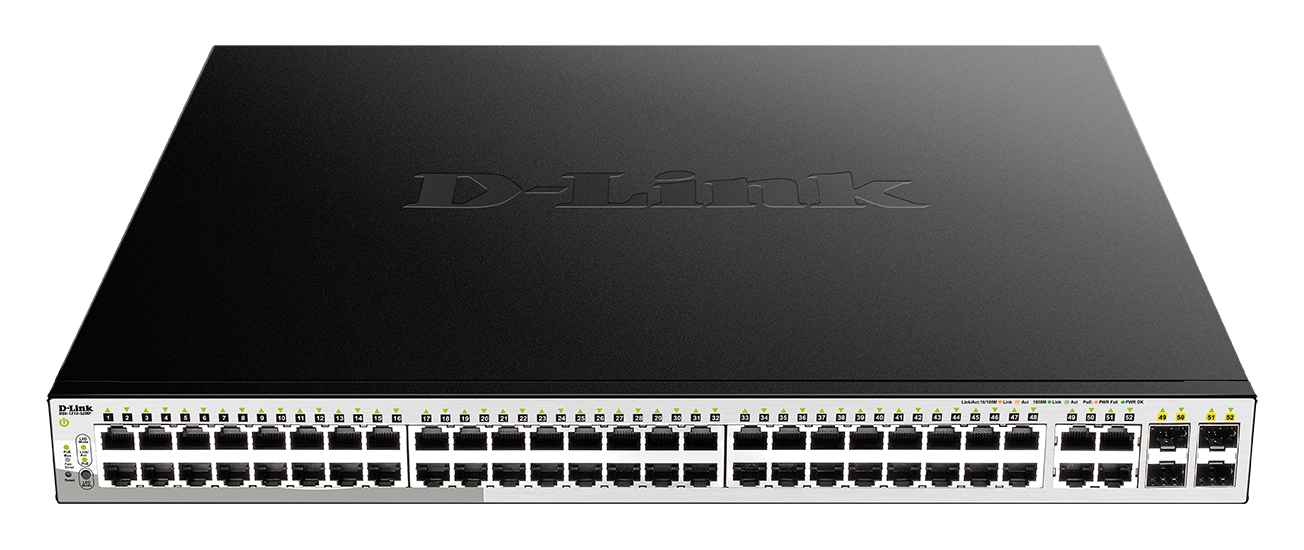

D-Link DGS-1210-52MP L2/L3 Smart+ PoE switch, 48x GbE PoE+, 4x RJ45/SFP, PoE 370W

Product description

DGS-1210-52MP: 52-Port Gigabit Max PoE Smart Managed Switch including 4 SFP ports (48 x PoE ports, fan)

Features

Green Technology

   Power saving via the following features:
       Link Status detection
       LED Shut-Off
       Port Shut-Off
       System Hibernation
       Time-based PoE (DGS-1210-10P/28P/52P/52MP only)

Security Features

   Access Control List secures network
   D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding
   Port Security supports 64 MACs per port
   ARP Spoofing Prevention

Intuitive Management

   D-Link Network Assistant Utility or Web-based GUI
   Built-in SNMP MIB for remote NMS (D-View 6.0)
   Compact CLI through Telnet

Advanced Features

   Auto Surveillance VLAN
   Loopback Detection automatically disables a port when a loop is detected
   Cable Diagnostics allows administrators to determine cable status
   SFP ports for flexibility
   Auto MDI/MDIX

Interface

Number of 10/100/1000BASE-TX ports
   DGS-1210-52/52P/52MP - 48 ports

Number of SFP ports
   DGS-1210-20/28/28P/28MP/52/52P/52MP - 4 ports

PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)
   DGS-1210-52MP (802.3af/802.3at/52 ports/370W)

Performance

Switch Capacity
   DGS-1210-52/52P/52MP - 104 Gbps

64-Byte Packet Forwarding Rate
   DGS-1210-52/52P/52MP - 77.4 Mpps

MAC Address Table Size

   16K

Packet Buffer
   DGS-1210-52/52P/52MP - 3 MB per device

Jumbo Frame

   Up to 9,216 Bytes

Physical & Environmental

Power Consumption (Standby/Maximum)
   DGS-1210-52MP - 48.9W / 483.1W (PoE)

Power Input

   10 to 240 VAC, 50/60HZ internal universal power supply

Dimensions (W x D x H)
   DGS-1210-52MP - 440 x 430 x 44 mm

Weight
   DGS-1210-52MP - 5.78 kg

Ventilation
   DGS-1210-52MP - smart fans

Heat Dissipation
   DGS-1210-52MP - 1,648.23 BTU per hour

Temperature

   Operating: -5° to 50°C (23° to 112°F)
   Storage: -20° to 70°C (-4° to 158°F )

Humidity

   Operating: 0% ~ 95% non-condensing
   Storage: 0% ~ 95% non-condensing

Certification

   CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick

Software Feature

L2 Features

   MAC Address Table
       16K entries
   IGMP Snooping
       IGMP v1/v2 Snooping
       Supports 256 IGMP groups
       Supports at least 64 static multicast addresses
       IGMP per VLAN
       Supports IGMP Snooping Querier
   Loopback Detection
   802.3ad Link Aggregation:
       DGS-1210 28/28P/28MP:  Maximum of 14 groups/8 ports per group
       DGS-1210 52/52MP/52P: Maximum of 26 groups/8 ports per group
       DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group
   LLDP
   LLDP-MED
   Jumbo Frame
       Up to 9,216 bytes
   Spanning Tree Protocol
       802.1D STP
       802.1w RSTP
       802.1s MSTP (for DGS-1210-28MP only)
   Flow Control
       802.3x Flow Control
       HOL Blocking Prevention
   Port Mirroring
       One-to-One
       Many-to-One
       Supports Mirroring for Tx/Rx/Both
   Multicast Filtering
       Forwards all unregistered groups
       Filters all unregistered groups
   Configurable MDI/MDIX
       MLD snooping v1/v2 (256 groups)

VLAN

   802.1Q
   VLAN Group
       Max. 256 static VLAN groups
   Configurable VID from 1 - 4094
   Asymmetric VLAN
   Auto Voice VLAN
       Max. 10 user-defined OUI
       Max. 8 default OUI
   Auto Surveillance VLAN

Quality of Service (QoS)

   802.1p Quality of Service
   8 queues per port
   Queue Handling
       Strict
       Weighted Round Robin (WRR)
   Bandwidth Control
       Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
   QoS based on:
       802.1p Priority Queues
       DSCP
       ToS
       IPv6 Traffic Class
       TCP/UDP port

L3 Features

   IP Interface
       Supports 1 interface
   IPv6 Neighbor Discovery (ND)
   Static Routing (for DGS-1210-28MP only)
       64 IPv4 Static Route Entries
       32 IPv4 Static Route Entries

Access Control List (ACL)

   Max. 50 access list
   Max. 768 rules shared by IPv4, MAC and IPv6
   Each rule can only be associated with a single port
   ACL based on
       802.1p priority
       VLAN
       MAC address
       Ether type
       IP address
       DSCP
       Protocol type
       TCP/UDP port number
       IPv6 Traffic Class

Security

   Broadcast/Multicast/Unicast Storm Control
   D-Link Safeguard Engine
   DHCP Server Screening
   IP-MAC-Port Binding (Smart Binding)
       Supports 512 address binding entries
       ARP Inspection
       ARP + IP Inspection
       Supports DHCP Snooping
   802.1X Port-based Access Control
   ARP Spoofing Prevention
       Max. 64 entries
   Traffic Segmentation
   SSH v2
   SSL
       Supports v1/v2/v3
   Port Security
       Supports up to 64 MAC addresses per port
   Duplicate address detection

AAA

   802.1X Authentication
       Supports local/RADIUS database
       Supports port-based access control
       Supports EAP, OTP, TLS, TTLS, PEAP
   IPv6 RADIUS Server
   Support MD5 authentication

MIB/RFC Standards

   RFC 783 TFTP
   RFC 951 BootP/DHCP Client
   RFC 1157 SNMP v1, v2, v3
   RFC 1213 MIB II
   RFC 1215 MIB Traps Convention
   RFC 1350 TFTP
   RFC 1493 Bridge MIB
   RFC 1769 SNTP
   RFC 1542 BootP/DHCP Client
   RFC 1901 SNMP v1, v2, v3
   RFC 1907 SNMP v2 MIB
   RFC 1908 SNMP v1, v2, v3
   RFC 2131 BootP/DHCP Client
   RFC 2138 RADIUS Authentication
   RFC 2139 RADIUS Authentication
   RFC 2233 Interface Group MIB
   RFC-2246 SSL
   RFC 2475
   RFC 2570 SNMP v1, v2, v3
   RFC 2575 SNMP v1, v2, v3
   RFC 2598 CoS
   RFC 2618 RADIUS Authentication
   RFC 2819 RMON v1
   RFC 2865 RADIUS Authentication
   RFC 3164 System Log
   RFC 3195 System Log
   RFC 3411-17 SNMP
   D-Link Private MIB
   LLDP MIB
   Zone Defense MIB
   2233 Interface Group MIB

OAM

   Cable Diagnostics
   Factory Reset

Management

   Web-based GUI
   D-Link Network Assistant Utility
   Compact CLI
   Telnet Server
   TFTP Client
   Configurable MDI/MDIX
   SNMP
       Supports v1/v2c/v3
   SNMP Trap
   Backup/Upgrade firmware
   Smart Wizard
   Upload/Download Configuration file
   System Log
       Max. 500 log entries
   BootP/DHCP Client
   SNTP
   ICMP v6
   IPv4/v6 Dual Stack
   DHCP Auto Configuration
   Time Setting
       SNTP
   RMONv1
   Trusted Host

Green V3.0 Technology

   Power Saving by:
       Link Status
       Time-based PoE: PoE ports can be turned on/off by port or system through schedule
       LED Shutoff
       System Hibernation
       Port Shutoff
