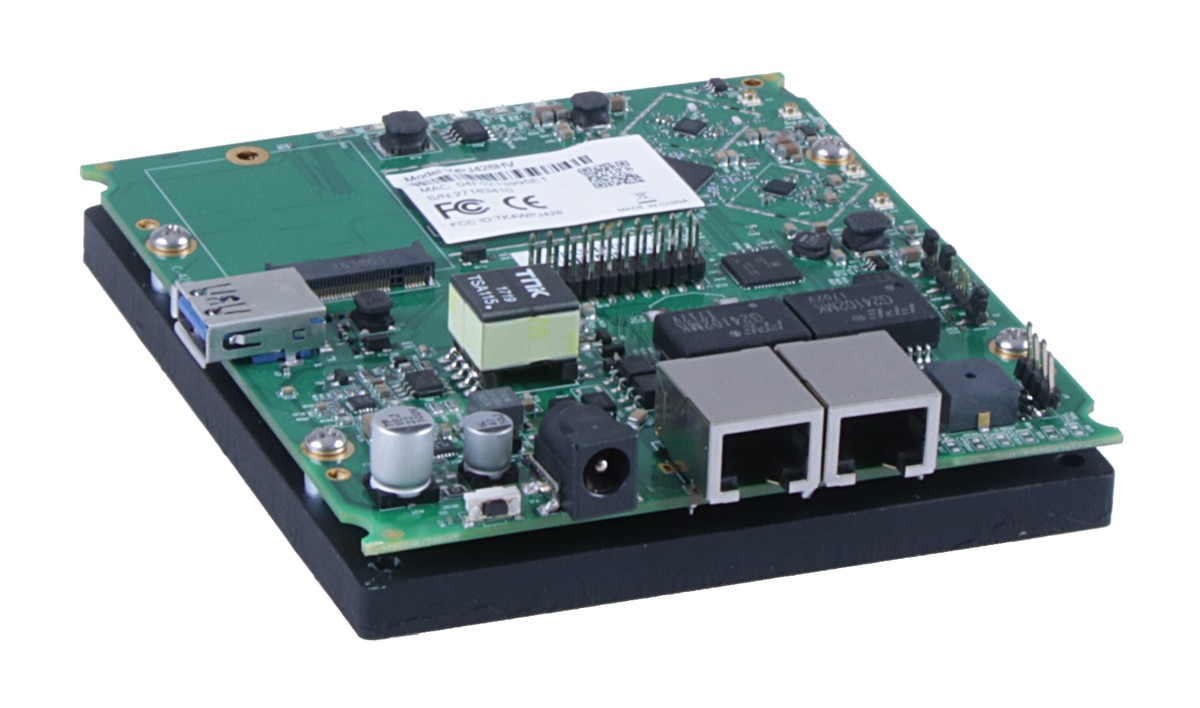

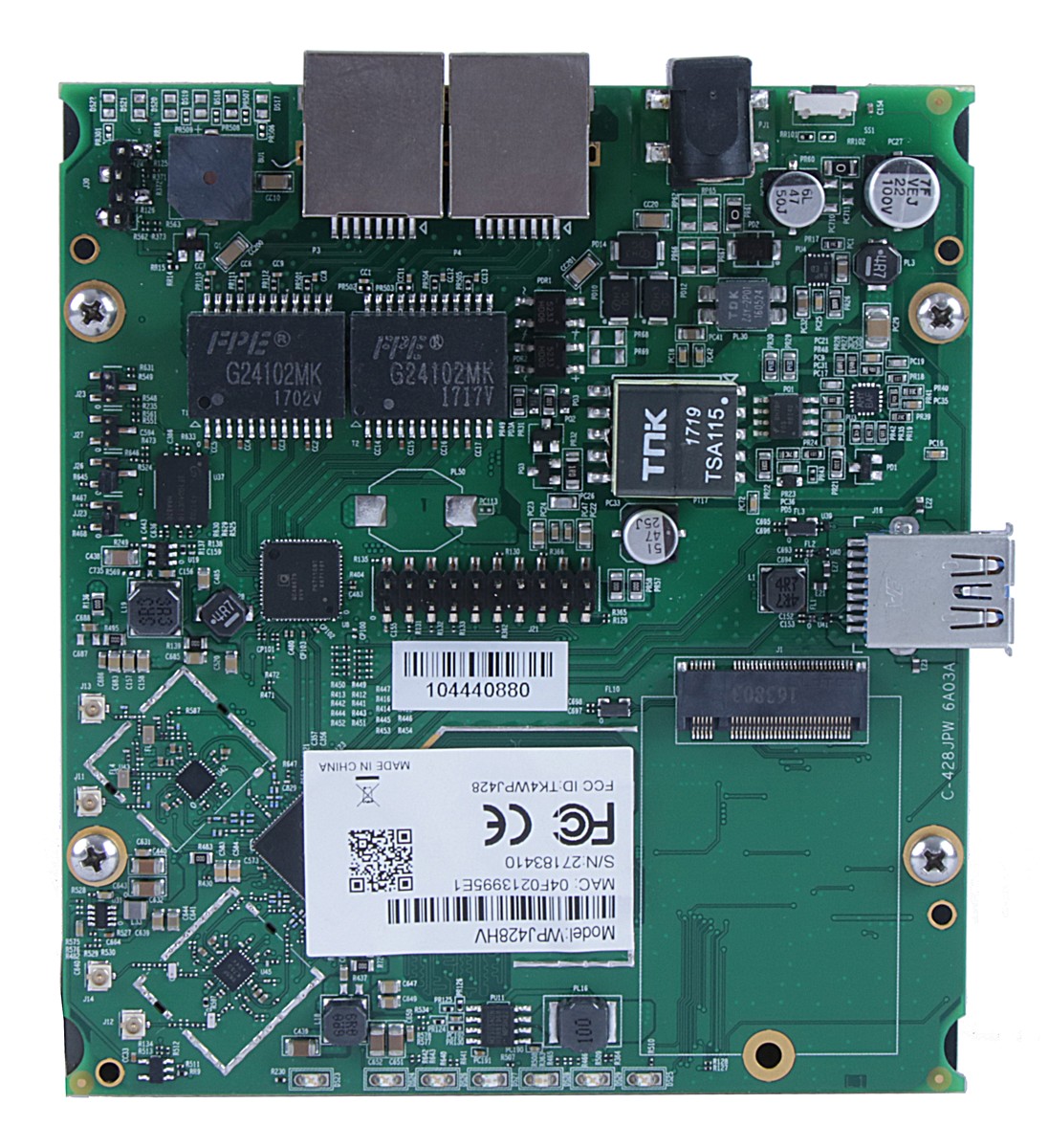

Compex WPJ428HV-6A board 16MB flash, 512MB RAM
Compex WPJ428HV-6A board 16MB flash, 512MB RAM
×
0/0
Sale
Your price excl. VAT
118.95 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 119.02 EUR |
| Your price incl. VAT (21%) | 144.01 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Compex |
|
|---|---|---|
| Code | 19702205 | |
| Part No. | WPJ428HV-6A | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-93
Frequency range [MHz]:
2412 - 2472, 5180 - 5825
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ac - wave2
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
400
Tx power 2.4GHz [dBm]:
22
Tx power 5GHz [dBm]:
21
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Connectors and Interfaces
USB ports 3.0:
1
RF connectors:
(4) u.Fl
LAN speed:
(2) 10/100/1000Mbps
Gigabit LAN:
Yes
USB:
Yes
Power
Power over Ethernet:
802.3af, 802.3at, 36 .. 56V DC, 24V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
19
Power via connector/terminal:
12V DC
Physical characteristics
Buttons:
Reset
Operating temperature [°C]:
-20 up to 70
Width [mm]:
117
Height [mm]:
105
Depth [mm]:
32
Hardware
CPU:
IPQ4028
CPU frequency [MHz]:
710
RAM [MB]:
512
Software
Default IP address:
192.168.1.1
Default login and password:
admin / password
Product description
Dual Band 2×2 802.11ac Wave 2 Wireless Embedded Board with M.2 Slot
