Cambium Networks XV2-23T Outdoor Wi-Fi 6 Access Point (EU)
Your price excl. VAT
573.03 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 573.10 EUR |
| Your price incl. VAT (21%) | 693.45 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Cambium Networks |
|
|---|---|---|
| Code | 17710035 | |
| Part No. | XV2-23T0B00-EU | |
| Warranty | 36 months | |
You have a choice of 2 variantscompare all
XV2-23T0B00-EU - Made in Vietnam
XV2-23T0B00-EU
573.03 EUR
ETH-SP-G2
9.62 EUR excl. VAT
11.72 EUR incl. VAT
In Stock
CT-290-48-B
6.37 EUR excl. VAT
7.71 EUR incl. VAT
In Stock
OFTP5E24-MSC
131.00 EUR excl. VAT
158.51 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
PL-E505X00A-EU
375.72 EUR excl. VAT
454.71 EUR incl. VAT
Not in stock
PL-E500INTA-EU
553.00 EUR excl. VAT
669.21 EUR incl. VAT
In Stock
PL-E510X00A-EU
555.00 EUR excl. VAT
671.63 EUR incl. VAT
Not in stock
PL-502S000A-EU
697.26 EUR excl. VAT
843.77 EUR incl. VAT
Not in stock
XV2-2T0XA00-EU
749.35 EUR excl. VAT
906.80 EUR incl. VAT
In Stock
XV2-2T1XA00-EU
861.95 EUR excl. VAT
1 043.04 EUR incl. VAT
In Stock
PL-E700X00A-EU
950.91 EUR excl. VAT
1 150.69 EUR incl. VAT
Not in stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11ac - wave2, 802.11ax, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
2402
Transmission speed - 2.4GHz [Mb/s]:
574
Tx power 2.4GHz [dBm]:
34
Tx power 5GHz [dBm]:
36
Security:
WPA, WPA2, WPA3
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Roaming:
Yes
Antenna gain [dBi]:
7, 10
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3af
PoE type:
PoE-In (only)
Max. power consumption [W]:
11
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-40 up to 65
Weight [g]:
1220
Width [mm]:
200
Height [mm]:
300
Depth [mm]:
84
Software
Operating mode:
Access Point
Management:
Web management, Cambium cnMaestro cloud
IPv6 support:
Yes
Video
Product description
The XV2-23T outdoor 2×2 Wi-Fi 6 AP with long range internal antennas. Ideal for hospitality, education, municipal, transportation and logistics applications. Cambium Networks offers a value tier outdoor Wi-Fi 6 access point designed for cost effective upgrade to the latest 802.11ax standard in Wi-Fi technology.
Designed for fast installation

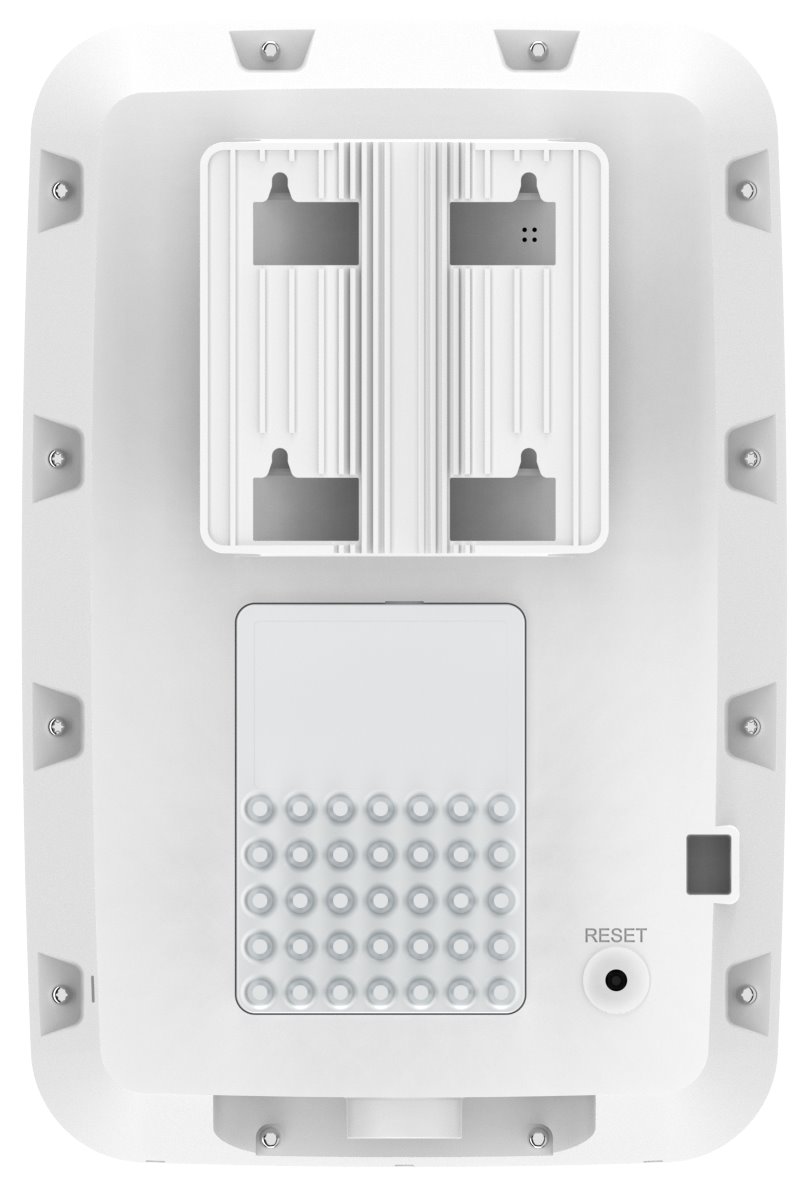

The XV2-23T offers multiple installation methods included in the same shipping box. Mount the AP to a pole using the included clamps, or to a flat surface using the integrated bracket. The XV2-23T is a compact size and high performance outdoor Wi-Fi 6 access point.
Free online tool for designing your Cambium Wi-Fi networkLink to Wi-Fi Designer:
Key Features
Download
Datasheet Installation Guide User GuideGPSR
