Cambium Networks XE5-8 Wi-Fi 6E Access point
Your price excl. VAT
2 131.44 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 2 131.51 EUR |
| Your price incl. VAT (21%) | 2 579.13 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Cambium Networks |
|
|---|---|---|
| Code | 17700425 | |
| Part No. | XE5-8X00A00-EU | |
| Warranty | 60 months | |
PL-E410X00B-EU
Price after login
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.43 EUR excl. VAT
4.15 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Maximum modulation:
4096 QAM
Wireless frequency:
2.4 + 5 + 6 GHz (triple band)
WiFi standards:
802.11ax, 802.11ac, 802.11ac - wave2, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Hotspot 2.0:
Yes
Transmission speed - 5GHz [Mb/s]:
2402 + 2402
Transmission speed - 2.4GHz [Mb/s]:
1148
Transmission speed - 6GHz [Mb/s]:
4804 + 4804
Tx power 2.4GHz [dBm]:
31
Tx power 5GHz [dBm]:
32
Tx power 6GHz [dBm]:
30
Security:
WEP, WPA, WPA2, WPA3
2.4GHz MIMO:
4 x 4
5GHz MIMO:
4 x 4
6GHz MIMO:
4 x 4
Type of antenna:
Built-in
Internal antennas:
20
Roaming:
Yes
Antenna gain [dBi]:
4, 5
Connectors and Interfaces
USB ports 3.0:
1
LAN speed:
(2) 100M/1G/2.5G/5Gbps
Gigabit LAN:
Yes
USB:
Yes
Other features:
Bluetooth
Power
Power over Ethernet:
802.3bt
PoE type:
PoE-In (only)
Max. power consumption [W]:
59
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
0 up to 50
Weight [g]:
1800
Width [mm]:
300
Height [mm]:
58
Depth [mm]:
300
Software
Operating mode:
Access Point
Management:
Web management, Cambium cnMaestro cloud
IPv6 support:
Transparent (bridge mode)
Video
Product description

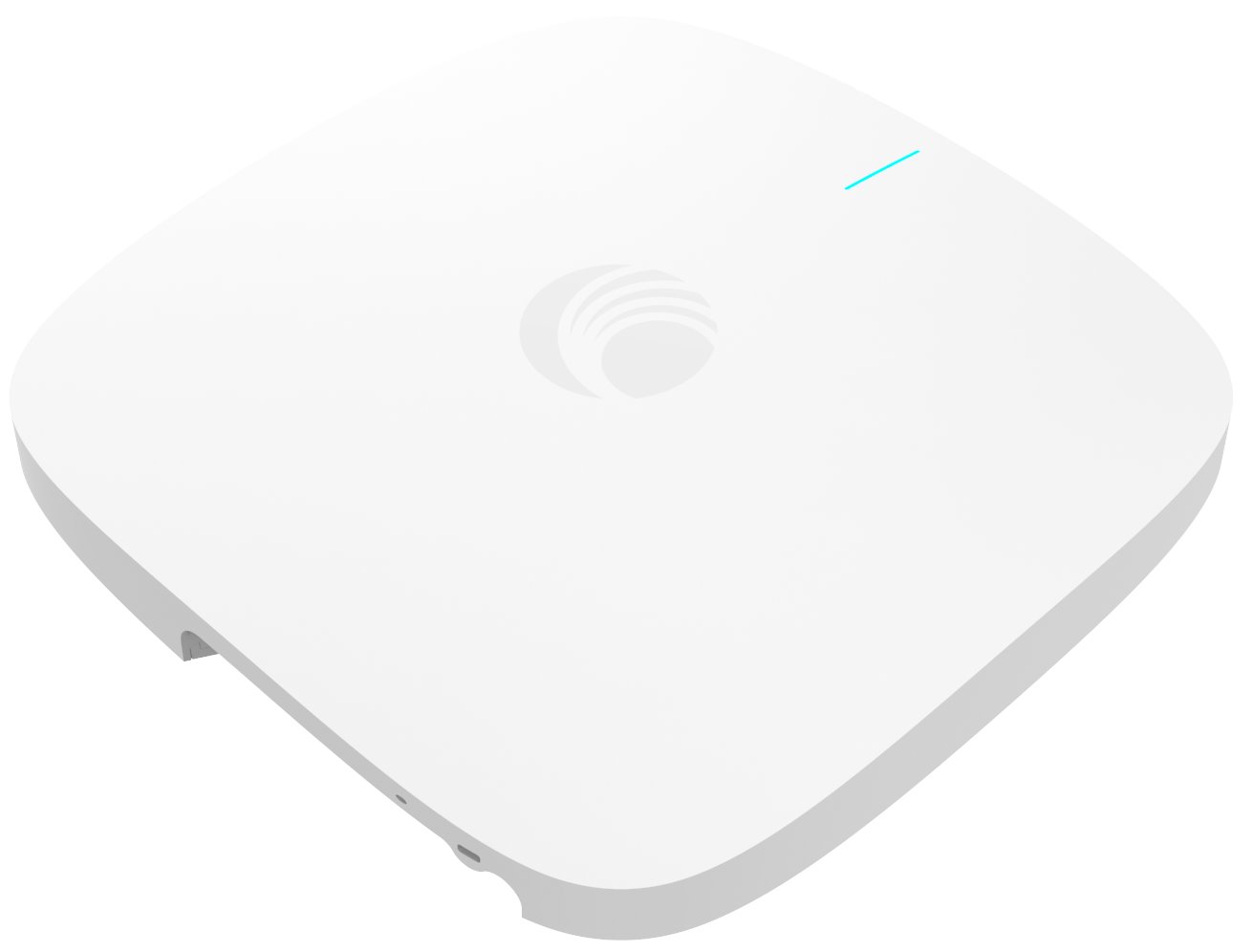

Indoor AP Cambium Networks XE5-8 of the WiFi 6E (802.11ax) standard with integrated omnidirectional antennas for the 2.4 GHz, 5 GHz and 6 GHz bands. XE5-8 has Software Defined Radio (SDR) - 4x 5/6 GHz radios allowing SW configuration and one standard 4x4 MIMO 2.4 GHz radio. The AP has 2 Ethernet LAN ports - 2x 5G Multigigabit metallic with PoE 802.3bt power supply support. The PoE injector is not included in the delivery.
Main Features
Link to Wi-Fi Designer:
Cloud and on-premises management
XV3-8 operates with either Cambium Networks’ XMS or cnMaestroTM management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.
Cambium Networks XMS leverages intelligent APs with an embedded edge controller to deliver edge services at any network density. XMS management plane is a cloud-first technology with a simple and easy-to-use interface delivering application L7 policy-based control, EasyPass BYOD secure access, and an MSP dashboard with drag-and-drop design.
Cambium Networks cnMaestro uses a distributed intelligence architecture with cloud-first management and edge-intelligent APs that self-optimize for the RF environment. cnMaestro delivers a single pane-of-glass management for Cambium broadband fixed wireless, cnMatrix Ethernet switches, enterprise-grade Wi-Fi APs and service provider residential routers.
Download
Datasheet Quick Start Guide User GuideBussines information
