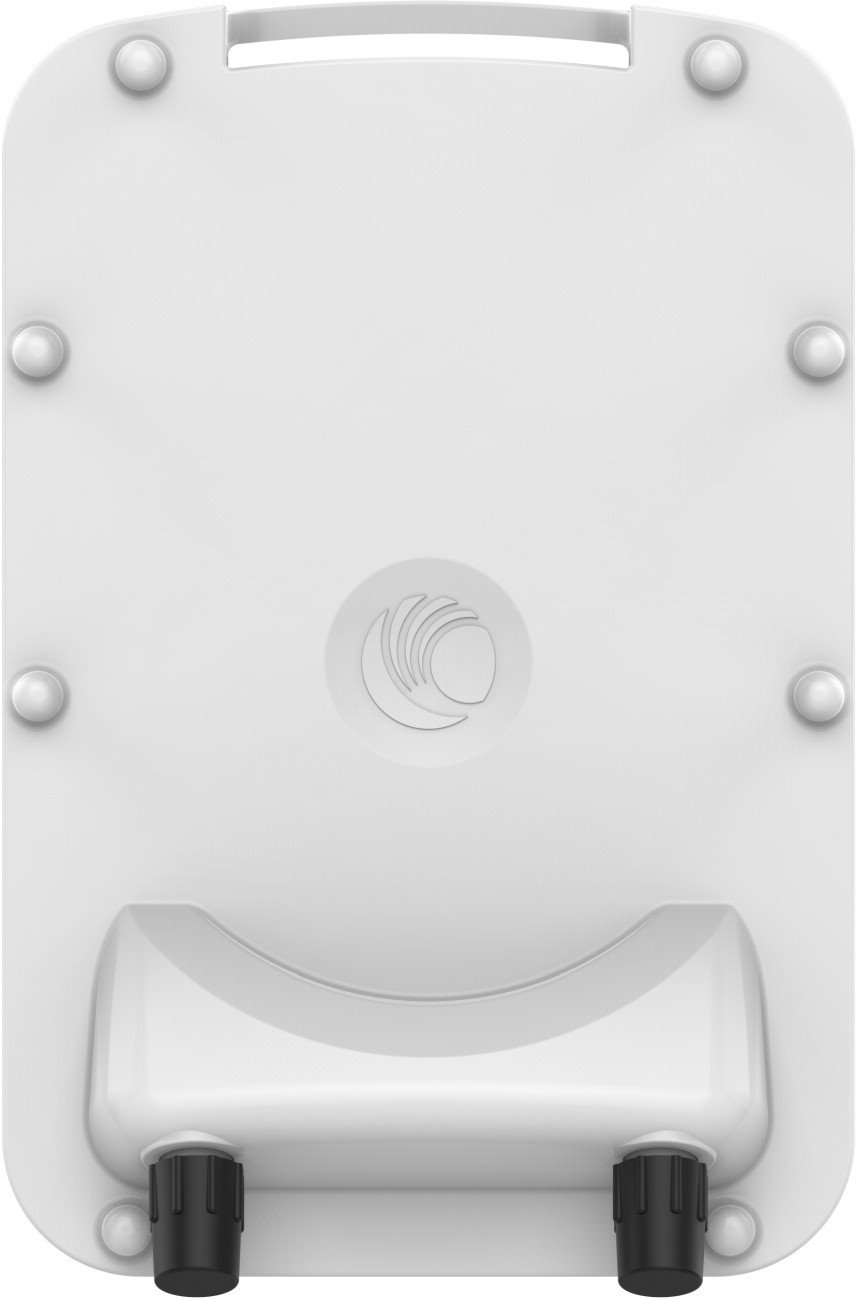

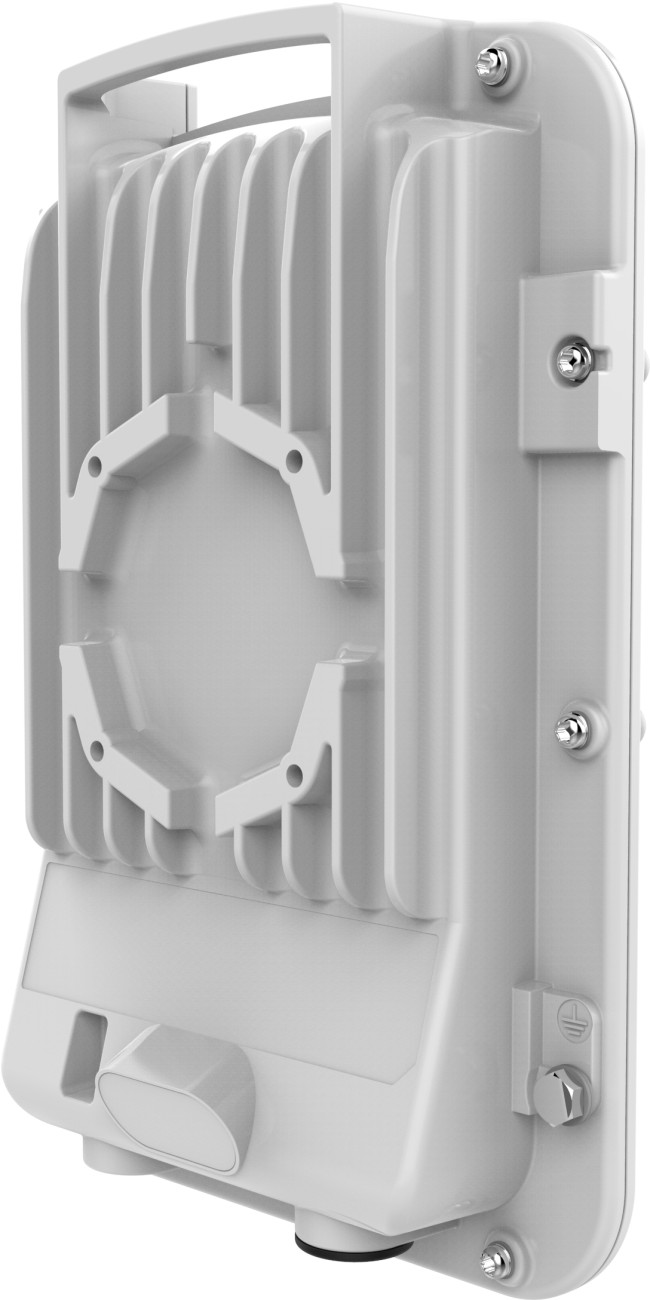

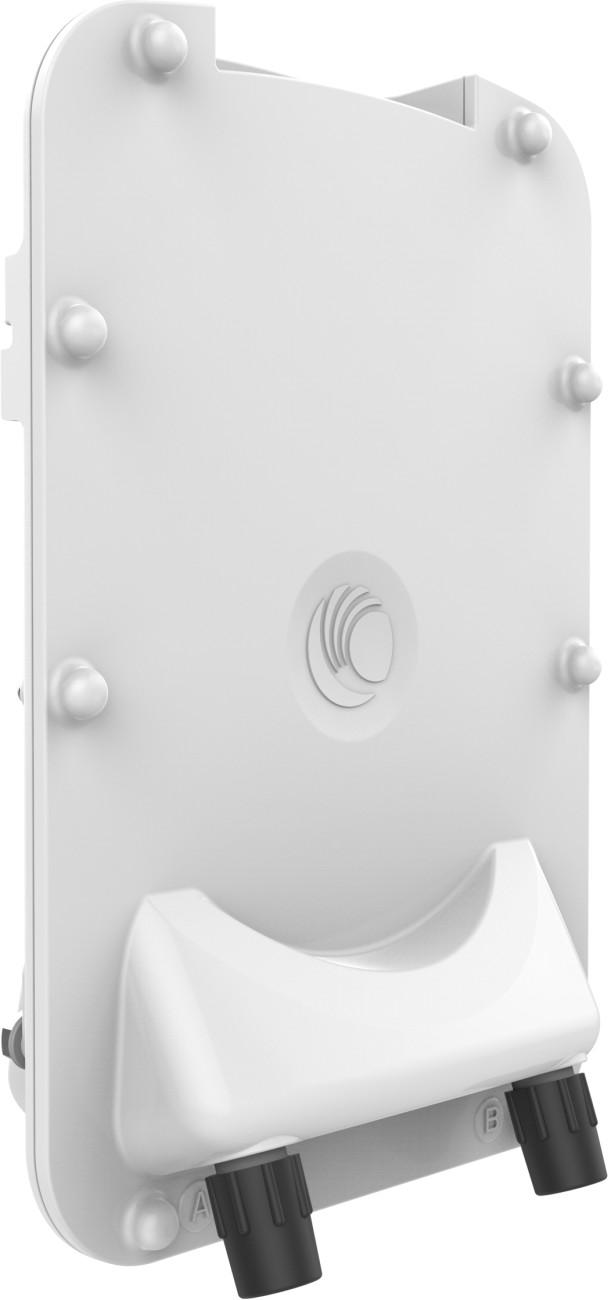

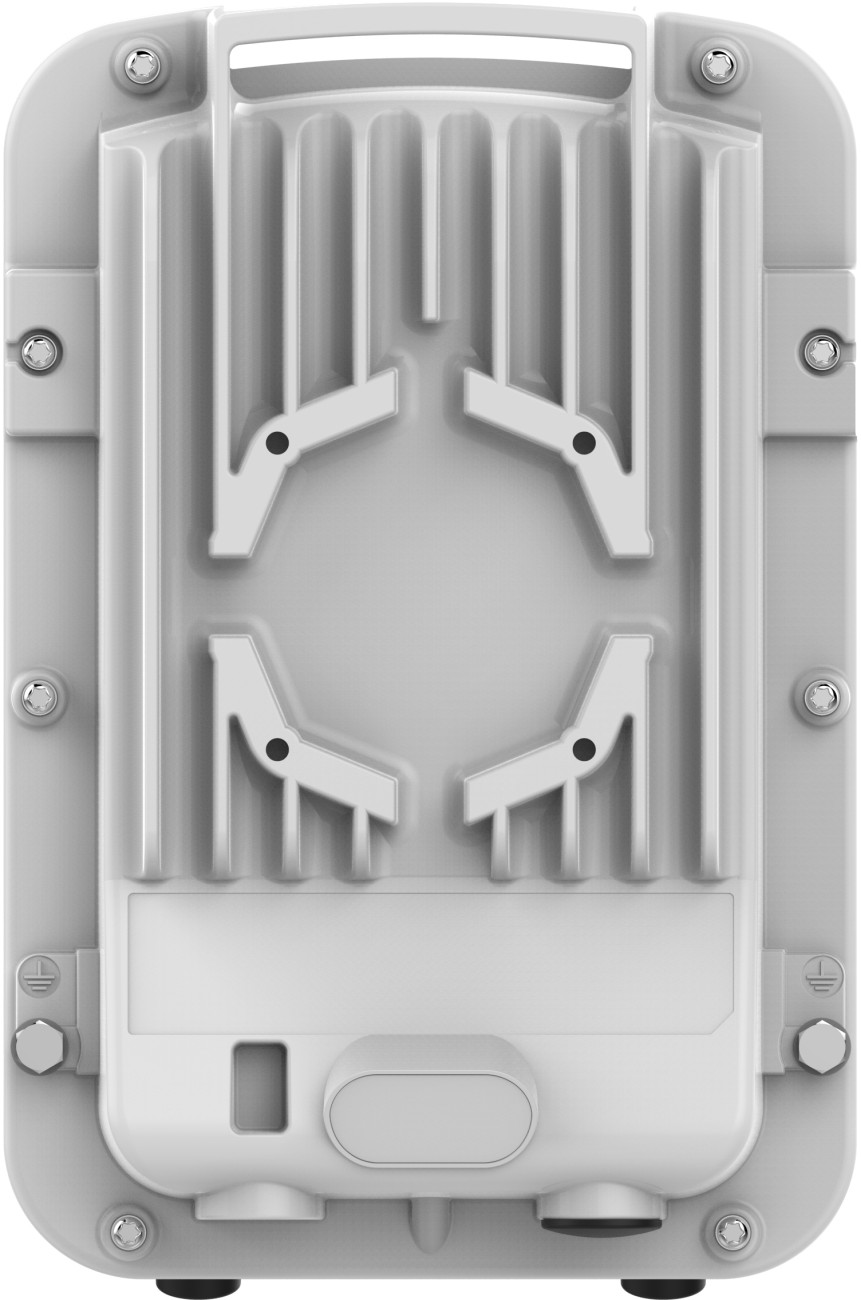

Cambium Networks PTP 550 Connectorized 5 GHz (EU) with EU Line Cord
Cambium Networks PTP 550 Connectorized 5 GHz (EU) with EU Line Cord
×
0/0
Your price excl. VAT
718.07 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 718.27 EUR |
| Your price incl. VAT (21%) | 869.11 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Cambium Networks |
|
|---|---|---|
| Code | 17700074 | |
| Part No. | C050055H003A | |
| Warranty | 36 months | |
ETH-SP-G2
9.85 EUR excl. VAT
12.00 EUR incl. VAT
In Stock
N000000L034B
27.44 EUR excl. VAT
33.30 EUR incl. VAT
In Stock
PK35S421V100
12.38 EUR excl. VAT
14.98 EUR incl. VAT
In Stock
CT-290-48-B
6.29 EUR excl. VAT
7.61 EUR incl. VAT
In Stock
OFTP5E24-MSC
129.26 EUR excl. VAT
156.40 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Frequency range [MHz]:
5170 - 5980
Wireless frequency:
5 GHz
WiFi standards:
802.11ac - wave2
Transmission speed - 5GHz [Mb/s]:
1400
Tx power 5GHz [dBm]:
27
Security:
128bit AES
5GHz MIMO:
2 x 2
Type of antenna:
Detachable
Detachable antennas:
2
Antenna gain [dBi]:
23
Connectors and Interfaces
LAN speed:
(1) 1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(1) 1000Mbps
Power
Power over Ethernet:
802.3at
PoE type:
PoE-In (only)
Max. power consumption [W]:
30
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-40 up to 60
Weight [g]:
1600
Width [mm]:
185
Height [mm]:
278
Depth [mm]:
88
Software
Operating mode:
Client
Management:
Web management, Cambium cnMaestro cloud
IPv6 support:
Yes
Product description
PTP 550: 1.36 Gbit CAPACITY
Cambium Network is excited to introduce our latest Point to Point Gigabit throughput solution based on 802.11 ac Wave 2 operating in 5 GHz wireless space, addressing the gigabit capacity needs for high speed backhaul solutions in mid range and long range applications. The PTP 550 solution draws its attributes from Cambium Networks’ Point to Point products such as PTP 650/670 and PTP 450i
METAL HOUSING
Each PTP 550 radio is enclosed in a rugged IP66/67 rated metal enclosure, which protects the radio from extreme conditions and solar radiation
ANTENNA ALIGNMENT
The “e-alignment” GUI provides the installer with an accurate and reliable way of installing PTP 550
CHANNEL BONDING
Each channel can have independent channel bandwidth that provides for flexibility in channel selection, band selection and address throughput requirements. Using two 80 MHz channel the PTP 550 achieves 1.36 Gbps.
Dynamic Channel Selection (DCS)
With Dynamic Channel Selection, PTP 550 systems constantly optimize the channel of operation to maximize link reliability and performance. Responding to the radio interference environment, PTP 550 will search for the clearest spectrum and move to it seamlessly. The customer benefits from best available throughput with limited spectrum in the most challenging environments
OTHER KEY FEATURES
