Cambium Networks ePMP 5 GHz Force 425 SM (EU, EU cord) - PTP mode only
Cambium Networks ePMP 5 GHz Force 425 SM (EU, EU cord) - PTP mode only
×
0/0
Your price excl. VAT
540.21 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 540.28 EUR |
| Your price incl. VAT (21%) | 653.74 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Cambium Networks |
|
|---|---|---|
| Code | 17700101 | |
| Part No. | C050940M203A | |
| Warranty | 36 months | |
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
PK35S421V100
12.46 EUR excl. VAT
15.08 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
5 GHz
WiFi standards:
802.11ax
Transmission speed - 5GHz [Mb/s]:
1201
Tx power 5GHz [dBm]:
28
Security:
128bit AES
Elevation beam width (-6dB) [°]:
15
Azimuth beam width (-6dB) [°]:
15
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
25
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(1) 10Gbps
Power
Power over Ethernet:
44 .. 59V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
28
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-30 up to 65
Weight [g]:
4800
Width [mm]:
470
Height [mm]:
470
Depth [mm]:
285
Software
Operating mode:
Bridge
Management:
Web management, Cambium cnMaestro cloud
IPv6 support:
Yes
Product description

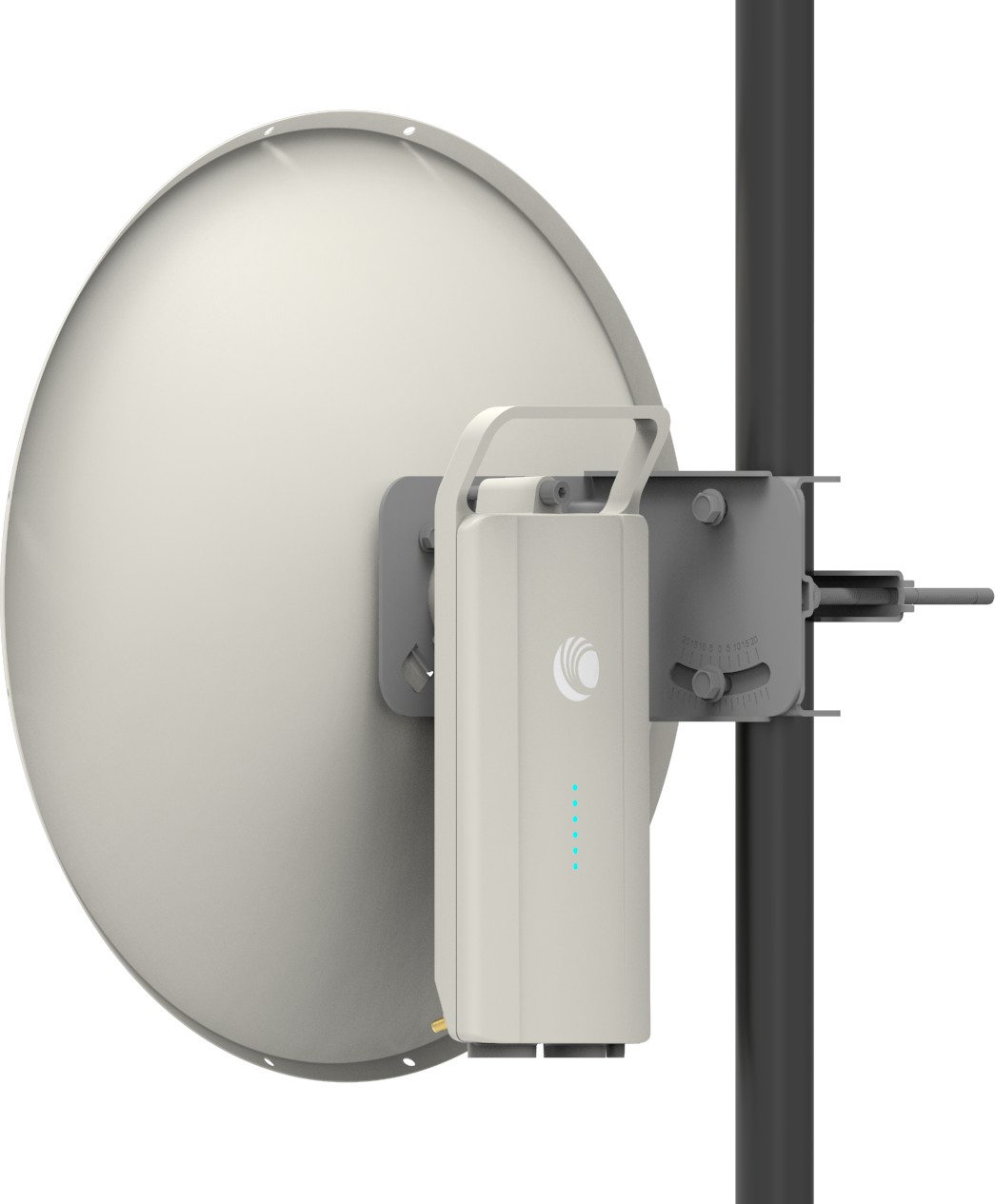

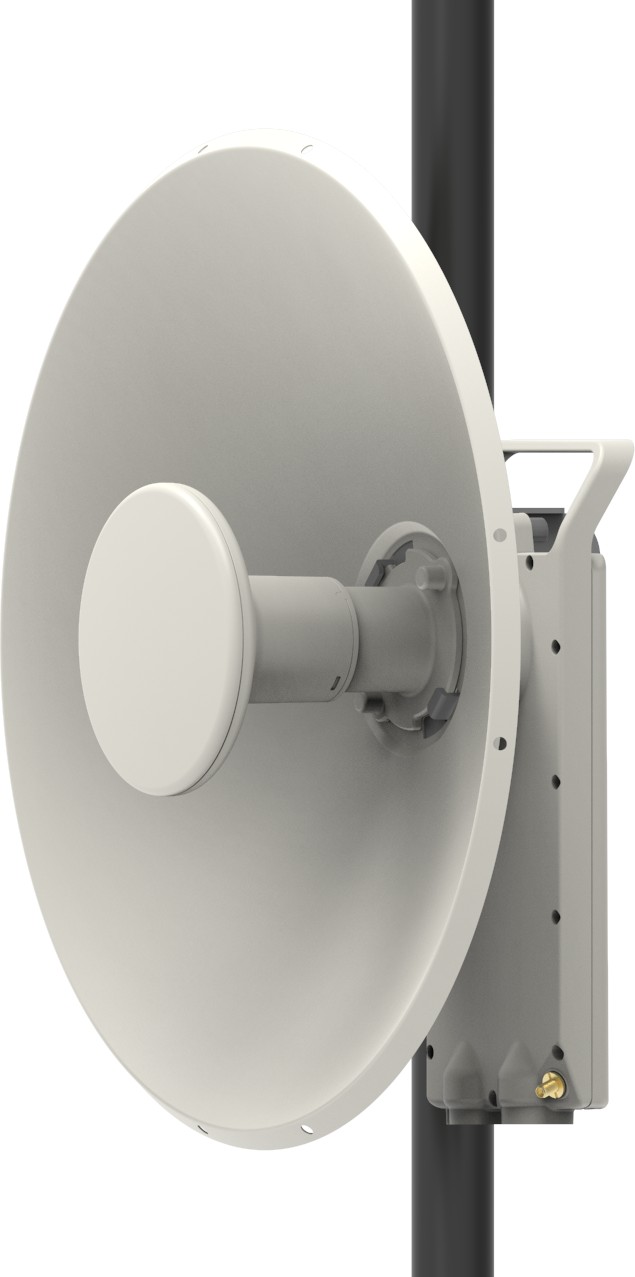

Cambium Networks introduces the ePMP Force 425 point to point solution delivering up to 1 Gbps throughput at a breakthrough price point based on the latest 802.11ax standards. The Force 425 pushes this capacity farther than ever with an integrated 25 dBi dish (and even farther with the optional 28 dBi range extender). The optional range extender is ordered separately and can be assembled and attached in the field to add additional link budget and fade margin for challenging links or to move to higher capacity where needed and higher modulations can be achieved.
802.11ax, 1Gbps throughput, 2x2 MIMO/OFDM, 1024 QAM, 20/40/80 MHz channel size, 10/100/1000 Ethernet interface, IP67, Frequency range 4910 - 6135 MHz, 128-bit AES encryption, temperature range -30°C to +65°C , 1 x RJ-45, 1 x SFP+, 802.3at or Passive PoE 44-59 V
Link to cnMaestro™:
Link to LINKPLanner:
