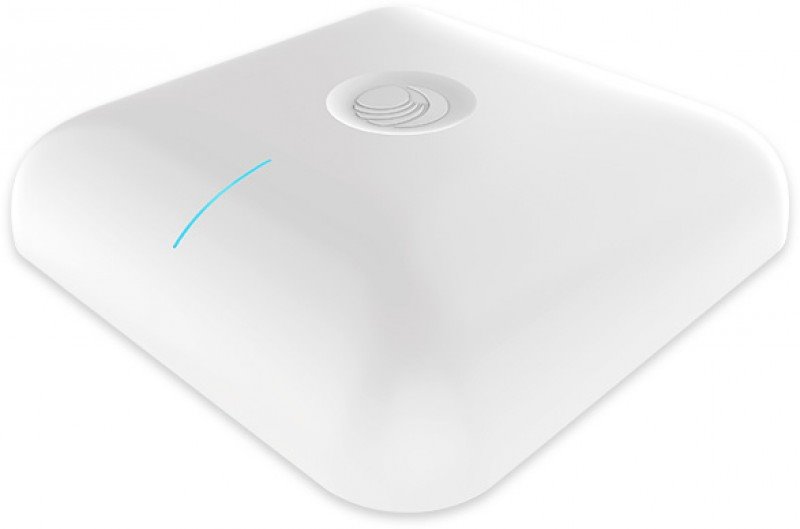

Cambium Networks cnPilot e600 - without PoE injector, EU
Your price excl. VAT
468.94 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 469.01 EUR |
| Your price incl. VAT (21%) | 567.50 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Cambium Networks |
|
|---|---|---|
| Code | 17700302 | |
| Part No. | PL-E600X00A-EU | |
| Warranty | 60 months | |
PL-E410X00B-EU
Price after login
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11ac - wave2, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Hotspot 2.0:
Yes
Transmission speed - 5GHz [Mb/s]:
1733
Transmission speed - 2.4GHz [Mb/s]:
400
Tx power 2.4GHz [dBm]:
24
Tx power 5GHz [dBm]:
28
2.4GHz MIMO:
2 x 2
5GHz MIMO:
4 x 4
Type of antenna:
Built-in
Roaming:
Yes
Antenna gain [dBi]:
6
Connectors and Interfaces
LAN speed:
(2) 10/100/1000Mbps
Gigabit LAN:
Yes
USB:
Yes
Power
Power over Ethernet:
802.3at
PoE type:
PoE-In (only)
Max. power consumption [W]:
17
Power via connector/terminal:
12V / 3A
Physical characteristics
Purpose:
Indoor
Operating temperature [°C]:
0 up to 50
Weight [g]:
558
Width [mm]:
180
Height [mm]:
180
Depth [mm]:
42
Software
Operating mode:
Access Point
Management:
Web management, Cambium cnMaestro cloud
IPv6 support:
Yes
Default IP address:
192.168.0.1, Dynamic from DHCP
Default login and password:
admin / admin
Video
Product description
High-performance, gigabit speed, beamforming, multi-user access point (MU-MIMO) 802.11ac wave 2 e600 with 4x4 antenna array implements the latest standards. Ideal for almost any location that requires high capacity, high reach and/or high client capacity. The ideal workhorse to meet the high demand for operation in classrooms (schools), indoor public spaces, shops, hotels or corporate offices.
Local and cnMaestro administration
- Zero-touch onboarding
- Inventory tracking & monitoring
- Mass configuration & upgrade
- Dashboard views with alarms
- Troubleshooting
- Hierarchical device organization
Free online tool for designing your Cambium Wi-Fi networkLink to Wi-Fi Designer:
Roaming
The e600 supports seamless roaming for up to 1,000 clients without the need for a network controller. Hosting a hotspot on the access point itself offers simplicity without a controller.
Coverage, capacity, speed
The fully rated e600 has a maximum transmission power of 25 dBm and is DFS certified to use additional dedicated 5 GHz DFS channels - offering more flexibility than ever before for both coverage and capacity. Broadband throughput management, increased performance through automatic channel search (ACS), and higher bandwidth speeds from client devices ensure that your network can adapt to dynamic client behavior.
High availability and density
The capacity of 256 concurrent client associations and 16 SSIDs, along with dual integrated Active / Standby memory banks, ensure that the e600 combines high density and high availability.
802.11ac wave 2 e600 comes with a free controller and no license AP management fees.
Cloud-managed Access
All cnPilot APs are managed by cnMaestro from the cloud, an onpremises VM or a private datacenter. cnMaestro provides a single-paneof-glass dashboard for Wi-Fi, Ethernet, fixed wireless broadband and service provider home routers. cnMaestro Essential cloud management is included at no additional cost. There are no setup fees, licenses or recurring costs. cnMaestro includes detailed network statistics, channel utilization graphs, and integrated remote troubleshooting tools to ensure service is always on.
Download
Datasheet Hardware Guide Installation GuideBussines information
