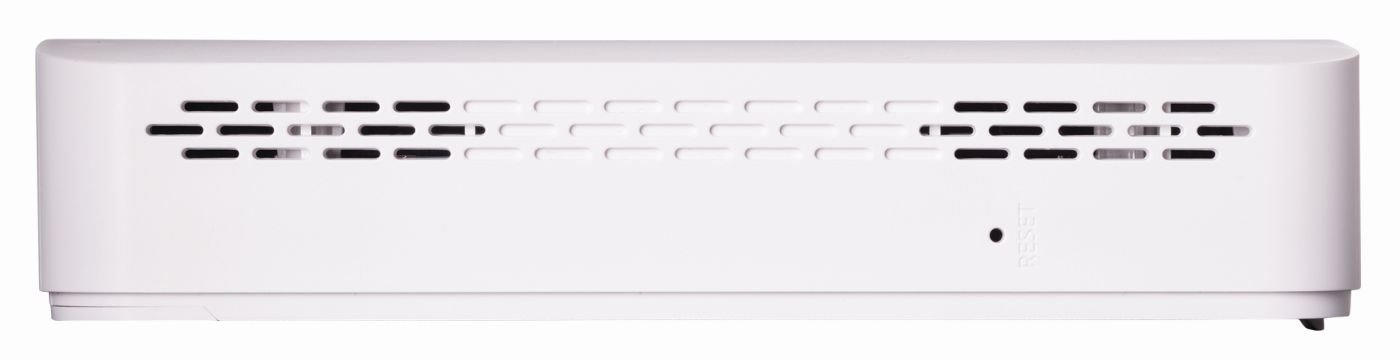

Cambium Networks cnPilot e425H wall plate, EU
Your price excl. VAT
254.85 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 254.92 EUR |
| Your price incl. VAT (21%) | 308.45 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Cambium Networks |
|
|---|---|---|
| Code | 17700306 | |
| Part No. | PL-E425H00A-EU | |
| Warranty | 60 months | |
PL-E410X00B-EU
284.99 EUR excl. VAT
344.92 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11n, 802.11a, 802.11b/g
Hotspot 2.0:
Yes
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
27
Tx power 5GHz [dBm]:
25
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
4
Connectors and Interfaces
LAN speed:
(3) 10/100/1000Mbps
Gigabit LAN:
Yes
USB:
Yes
Power
Power over Ethernet:
802.3af
PoE type:
PoE-In (only)
Max. power consumption [W]:
9
Physical characteristics
Purpose:
Indoor
Operating temperature [°C]:
0 up to 40
Weight [g]:
268
Width [mm]:
94
Height [mm]:
147
Depth [mm]:
32
Software
Operating mode:
Access Point
Management:
Web management, Cambium cnMaestro cloud
IPv6 support:
Yes
Default IP address:
192.168.0.1, Dynamic from DHCP
Default login and password:
admin / admin
Video
Product description
cnPilot e425H enterprise class indoor wall plate access point supporting 802.11ac Wave 2 standards based beamforming, is perfect for hotels and resorts, multi-dwelling units (MDUs) or just about any place indoor that needs a wall mounted AP with multiple Gig E ports to drive indoor Wi-Fi and wired port network access managed via portals.
Do-Not-Disturb Hotel Design
Hotel guests connect to Wi-Fi before turning on the TV. Wi-Fi is a must-have to stay connected with coworkers, family and social media. With the e425 wall plate AP, the guest will be delighted with a perfect connection to all their devices. Customize the cloud-managed guest access with a fully configurable cloud portal with templates, point and click interface, or HTML CSS.
Designed For Fast Installation
e425 install quickly over a standard wiring box, or to other boxes and surfaces using the optional mounting adapters. e425 has three gigabit Ethernet ports. All ports support 802.1Q VLANs, IGMP, switched virtual interface layer 3 routing DHCP, and firewall. Deliver 15 watts of operating power to an external device such as a VoIP phone, an in-room IoT hub or even another AP. VLAN and IP segmentation allows secure connections to a TV set-top box, laptop, printer, or any networked device.
Free online tool for designing your Cambium Wi-Fi networkLink to Wi-Fi Designer:
Key Features
Cloud-Managed Access
Download
Case Study Datasheet Installation GuideGPSR
