Cambium Networks cnMatrix MX-EX1010PXA-E PoE Switch
Your price excl. VAT
446.48 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 446.55 EUR |
| Your price incl. VAT (21%) | 540.33 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Cambium Networks |
|
|---|---|---|
| Code | 17700131 | |
| Part No. | MX-EX1010PXA-E | |
| Warranty | 60 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
Video
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 10/100/1000Mbps
Optical interfaces:
(2) 1000Mbps
Serial port:
RJ45
USB ports 2.0:
1
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
8
PoE budget [W]:
75
Max. power consumption [W]:
11
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
0 up to 50
Width [mm]:
210
Height [mm]:
44
Depth [mm]:
250
General
Switchning capacity [Gbps]:
20
MAC address table:
16000
Jumbo frame [Bytes]:
9000
Packet forwarding rate [Mpps]:
120
Software
Web management:
Yes
Management:
Web management, Cambium cnMaestro cloud, SSH, Telnet
Features:
VLAN, QoS, DHCP snooping
Video
Product description

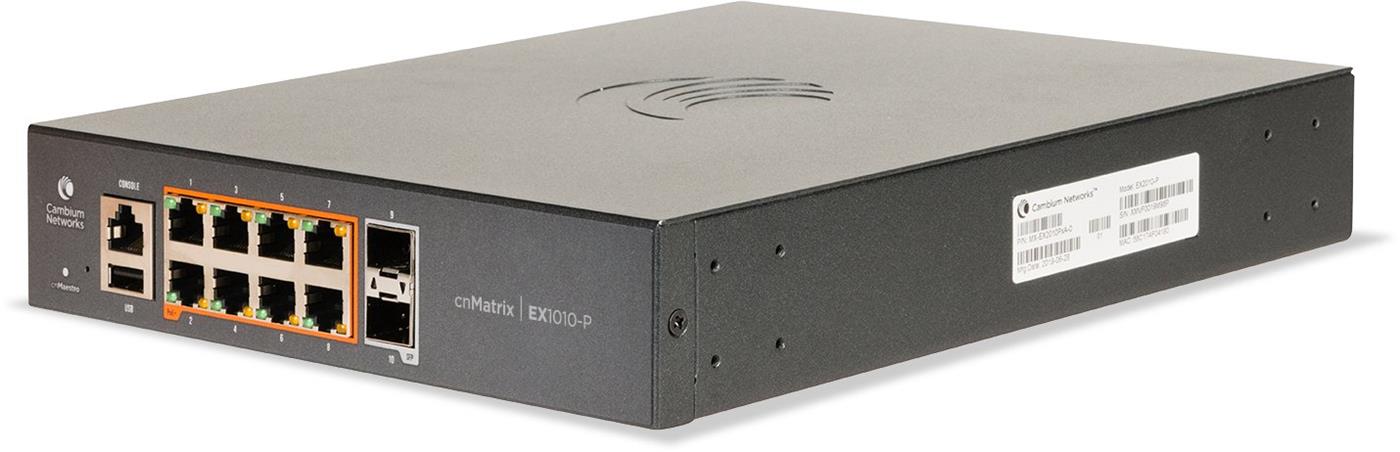

Gigabit L3 PoE switch Cambium Networks EX1010-P is equipped with 8 metal PoE+ 1G ports and 2x 1G SFP uplink ports. The switch has an RJ-45 console port. The power supply of the switch is solved by means of a built-in AC power supply and the PoE budget switch is 75 W. The switch is 1U high, half-width and only 250 mm deep. The switch is designed as a small access switch with PoE power supply.
Key Features
Package Contents
Download
CLI User Guide DatasheetGPSR
