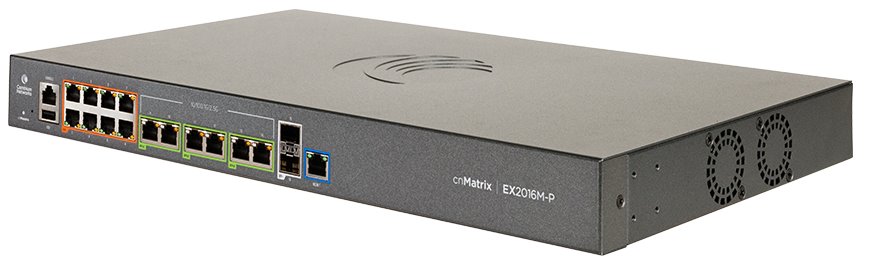

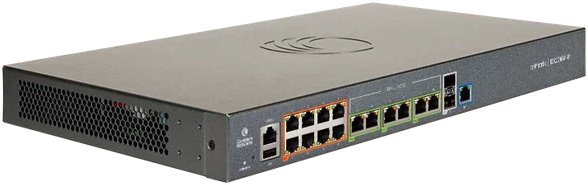

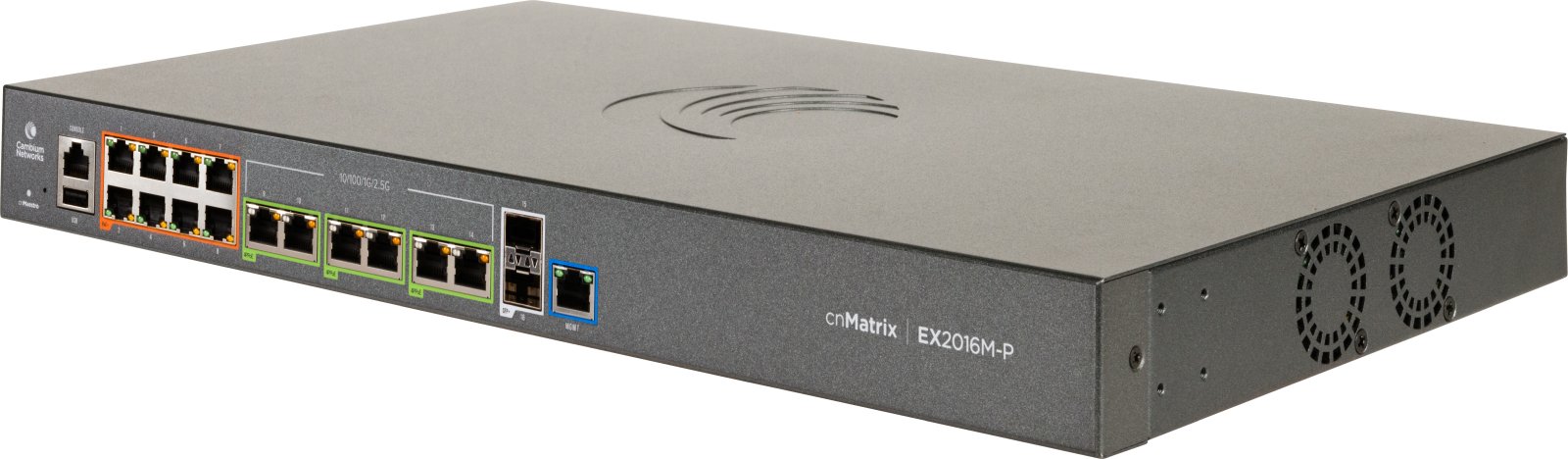

Cambium Networks cnMatrix EX2016M-P PoE Switch
Your price excl. VAT
2 086.78 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 2 086.85 EUR |
| Your price incl. VAT (21%) | 2 525.09 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Cambium Networks |
|
|---|---|---|
| Code | 17700432 | |
| Part No. | MXEX2016MxPA00 | |
| Warranty | 60 months | |
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(6) 100/1000/2500Mbps + (8) 10/100/1000Mbps
Management LAN:
(1) 10/100Mbps
Optical interfaces:
(2) 10Gbps
Serial port:
RJ45
USB ports 2.0:
1
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at, 802.3bt
PoE Out ports:
14
PoE budget [W]:
240
Max. power consumption [W]:
27
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
Yes
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
0 up to 50
Width [mm]:
440
Height [mm]:
44
Depth [mm]:
250
General
Switchning capacity [Gbps]:
86
MAC address table:
16000
Jumbo frame [Bytes]:
9000
Packet forwarding rate [Mpps]:
120
Software
Web management:
Yes
Management:
Web management, Cambium cnMaestro cloud, SSH, Telnet
Features:
VLAN, QoS, DHCP snooping
Video
Product description
Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
The cnMatrix platform of switches provides:
The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX2000 series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports. These switches come with a 5-Year Limited Lifetime Warranty.
Package contents
Download
DatasheetGPSR
