Cambium Networks cnMatrix EX2010-P PoE Switch
Your price excl. VAT
851.91 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 851.98 EUR |
| Your price incl. VAT (21%) | 1 030.90 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Cambium Networks |
|
|---|---|---|
| Code | 17710002 | |
| Part No. | MX-EX2010PxA-E | |
| Warranty | 60 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 10/100/1000Mbps + (1) 10/100Mbps (managment)
Management LAN:
(1) 10/100Mbps
Optical interfaces:
(2) 1000Mbps
Serial port:
RJ45
USB ports 2.0:
1
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
8
PoE budget [W]:
100
Max. power consumption [W]:
10,5
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Desktop
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
0 up to 50
Width [mm]:
210
Height [mm]:
44
Depth [mm]:
250
General
Switchning capacity [Gbps]:
20
MAC address table:
16000
Jumbo frame [Bytes]:
9000
Software
Web management:
Yes
Management:
Web management, SSH, Telnet, Cambium cnMaestro cloud
Features:
VLAN, QoS, DHCP snooping
Video
Product description

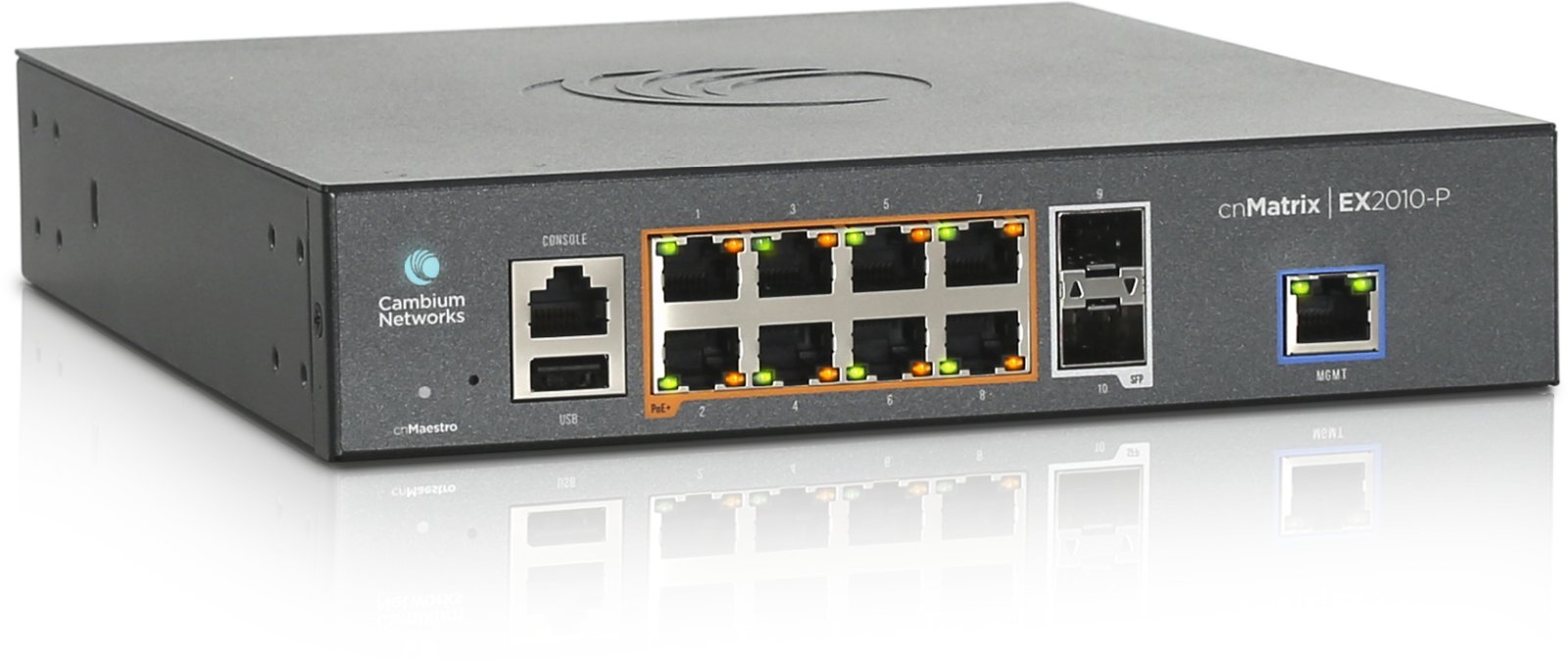

Cambium Networks cnMatrix EX2010-P is an L2 / L3 manageable PoE switch with quiet operation without a fan. The switch offers 8x Gigabit LAN with PoE-out 802.3af/at on all eight ports, maximum PoE consumption per port is 30W, total PoE budget of 100W, two SFP ports, Ethernet port for local management, serial console and USB port. The switch has a metal chassis with the option to purchase a 1U kit for mounting in a 19" rack.
Cambium Networks' next-generation switch platform offers a cloud-based, high-performance, feature-rich Ethernet switching solution. The cnMatrix switch platform provides:
The cnMatrix platform of switches provides
Link to cnMaestro™:
Download
Datasheet User GuideGPSR
