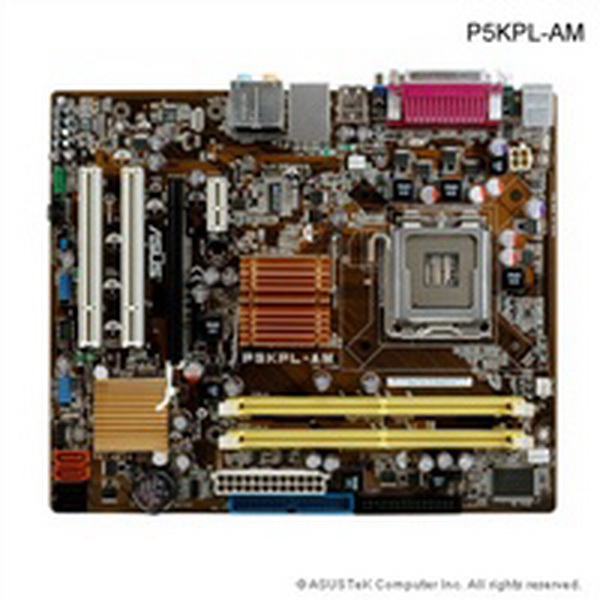

ASUS MB Sc 775 P5KPL-AM , Intel G31, VGA

Product description

Specification
CPU Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium D/Pentium 4/Celeron E1000 Series and Celeron 400 Series Processors Intel Hyper-Threading Technology ready *Refer to www.asus.com for Intel CPU support list Chipset Intel G31 Intel ICH7 Front Side Bus 1600*/1333/1066/800 MHz (*1600 is overclock speed) Memory 2 x DIMM, Max. 4 GB, DDR2 1066*/800/667 Non-ECC,Un-buffered Memory Dual Channel memory architecture *Overclock speed **Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List) ***When installing total memory of 4GB capacity or more, WindowsR 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended. Expansion Slots 1 x PCIe x16 1 x PCIe x1 2 x PCI VGA Integrated Intel Graphics Media Accelerator (Intel GMA 3100) Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:85Hz Storage Southbridge 1 xUltraDMA 100/66/33 4 xSATA 3 Gb/s ports LAN Realtek RTL8102EL 100/10 LAN Audio VIA VT1708B 8 -Channel High-Definition Audio CODEC Anti-Pop Function Jack-detect & Multi-Streaming Support S/PDIF Out connector USB 8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel) Overclocking Features SFS (Stepless Frequency Selection) - FSB tuning from 200MHz up to 600MHz at 1MHz increment Overclocking Protection - ASUS C.P.R.(CPU Parameter Recall) Special Features ASUS MyLogo 2 ASUS EZ Flash 2 ASUS CrashFree BIOS 3 ASUS Q-Fan ASUS O.C. Profile Back Panel I/O Ports 1 x Parallel 1 x VGA 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x LAN(RJ45) port 4 x USB 2.0/1.1 1 x COM port 8 -Channel Audio I/O Internal I/O Connectors 2 x USB connectors support additional 4 USB ports 1 x CPU Fan connector 1 x Chassis Fan connector 1 x Power Fan connector 1 x internal speaker connector 1 x S/PDIF Out connector 1 x4-pin ATX 12V Power connector 24-pin EPS 12V Power connector CD audio in connector Front panel audio connector Chassis Intrusion connector CD/AUX audio in System Panel
