MikroTik Cloud Router Switch CRS310-1G-5S-4S+OUT, netFiber 9
Your price excl. VAT
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300685 | |
| Part No. | CRS310-1G-5S-4S+OUT | |
| Warranty | 24 months | |
ETH-SP-G2
9.85 EUR excl. VAT
12.00 EUR incl. VAT
In Stock
CT-290-48-B
6.29 EUR excl. VAT
7.61 EUR incl. VAT
In Stock
OFTP5E24-MSC
129.26 EUR excl. VAT
156.40 EUR incl. VAT
In Stock
ML-S+85D-03
8.46 EUR excl. VAT
10.32 EUR incl. VAT
In Stock
ML-S31D-3
6.25 EUR excl. VAT
7.65 EUR incl. VAT
In Stock
ML-S85D-05
6.52 EUR excl. VAT
7.97 EUR incl. VAT
In Stock
ML-S+31D-10
13.68 EUR excl. VAT
16.64 EUR incl. VAT
In Stock
ML-S3155-20
6.25 EUR excl. VAT
7.65 EUR incl. VAT
In Stock
ML-S31D-20
6.52 EUR excl. VAT
7.97 EUR incl. VAT
In Stock
ML-S+2733-10
18.58 EUR excl. VAT
22.57 EUR incl. VAT
In Stock
ML-S+3327-10
18.58 EUR excl. VAT
22.57 EUR incl. VAT
In Stock
ML-SFP-RJ45-1G
15.74 EUR excl. VAT
19.13 EUR incl. VAT
In Stock
ML-S5531-20
8.58 EUR excl. VAT
10.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(5) 1000Mbps + (4) 10Gbps
Serial port:
RJ45
Power
Power over Ethernet:
802.3af, 802.3at, 18 .. 57V DC
Power type:
PoE, DC connector
PoE type:
PoE-In (only)
Redundant power supply:
Yes
Power via connector/terminal:
18 .. 57V DC
Physical characteristics
Protection class:
IP54
Design:
Outdoor
Fans:
No
Chassis design:
Plastic
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Width [mm]:
212
Height [mm]:
304
Depth [mm]:
71
Hardware
CPU:
98DX226S
CPU frequency [MHz]:
800
CPU cores:
1
RAM [MB]:
256
Software
Web management:
Yes
Management:
Web management
Features:
VLAN, QoS
Operating system:
SwOS, RouterOS - L5
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description

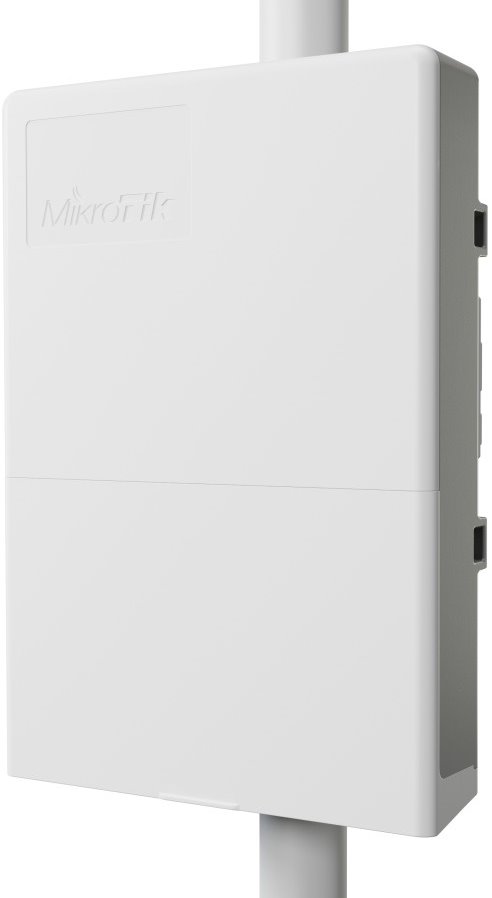

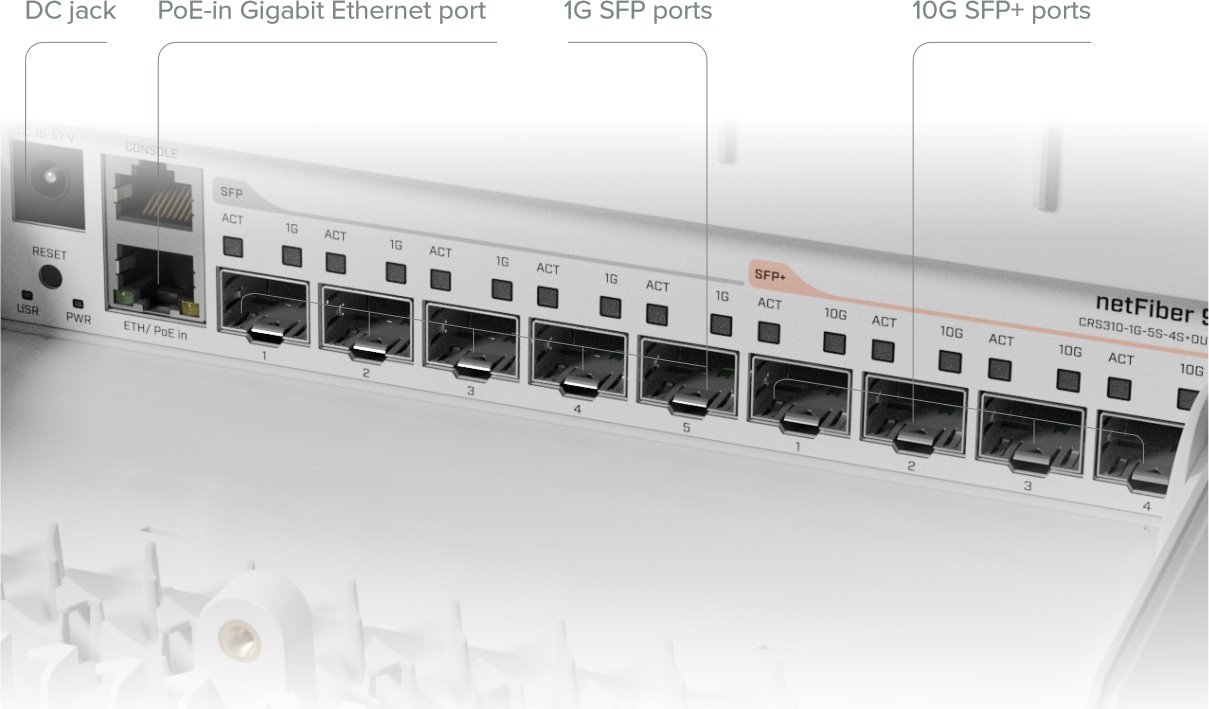

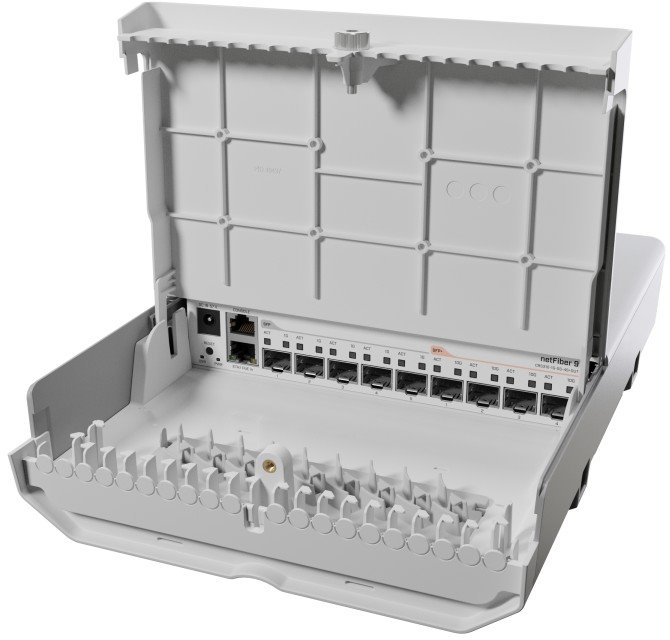

CRS310-1G-5S-4S + OUT or netFiber 9 is an outdoor optical switch router without a fan, with IP54 certification and a full-fledged RouterOS operating system with L5 license but and SwOS thanks to Dual boot. The switch contains 4x SFP, 5x SFP+, 1x GLAN and one console RJ45 port. The Cloud Router Switch is powered by a single-core ARM v7 processor (98DX226S) clocked at 800 MHz and has 256MB RAM.
In terms of power supply, the switch can be powered via 2 standard power adapters for redundancy (18 to 57 V) but also via passive PoE (18 to 57 V) or 802.3af/at on the first Ethernet port.

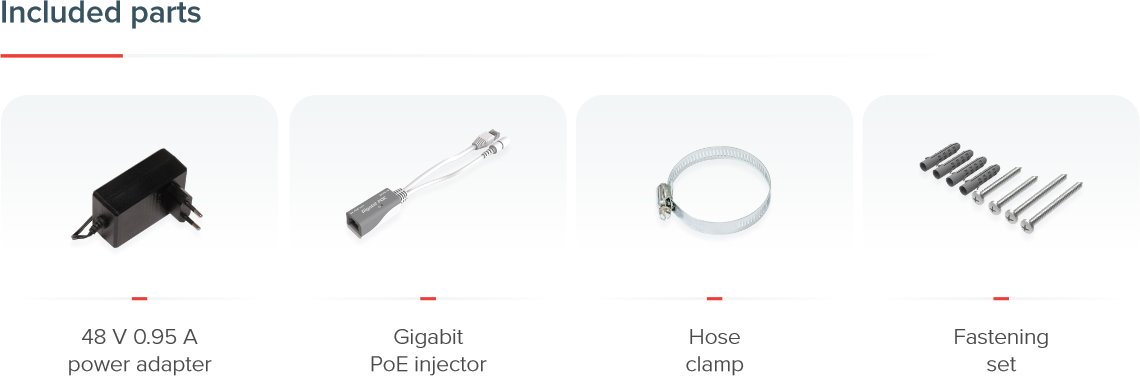

Package Contents
Articles and reviews
SFP compatibility listDownload
CE Datasheet Firmware (RouterOS / SwOS)Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
