TP-Link P1201-08 - 8-port GPON OLT
We are sorry, this product is no longer in our offer.
![Masterlan patch cable UTP, Cat5e, 1m, yellow](masterlan-patch-kabel-utp-cat5e-1m-zluty_ig74204.jpg?attname=thumbnail&attpedid=52)
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
![Masterlan comfort patch cable UTP, Cat5e, 5m, gray](masterlan-comfort-patch-kabel-utp-cat5e-5m-sedy_ig81341.jpg?attname=thumbnail&attpedid=52)
PCU5E-5-MSC
3.15 EUR excl. VAT
3.81 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 10/100/1000Mbps + (1) 10/100Mbps (managment)
GPON SFP cages:
8
Optical interfaces:
(8) 1000Mbps
Serial port:
RJ45
Power
Max. power consumption [W]:
65
Power via connector/terminal:
230V AC
Physical characteristics
Fans:
(8) 40 x 40 mm
Buttons:
Reset
Operating temperature [°C]:
0 up to 50
Weight [kg]:
4
Width [mm]:
440
Height [mm]:
44
Depth [mm]:
391
Product description

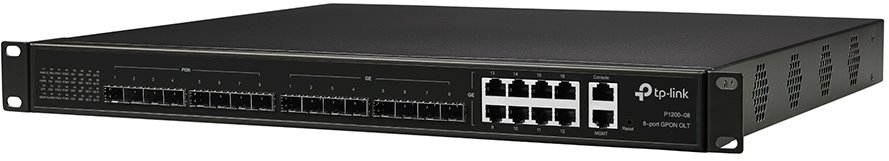

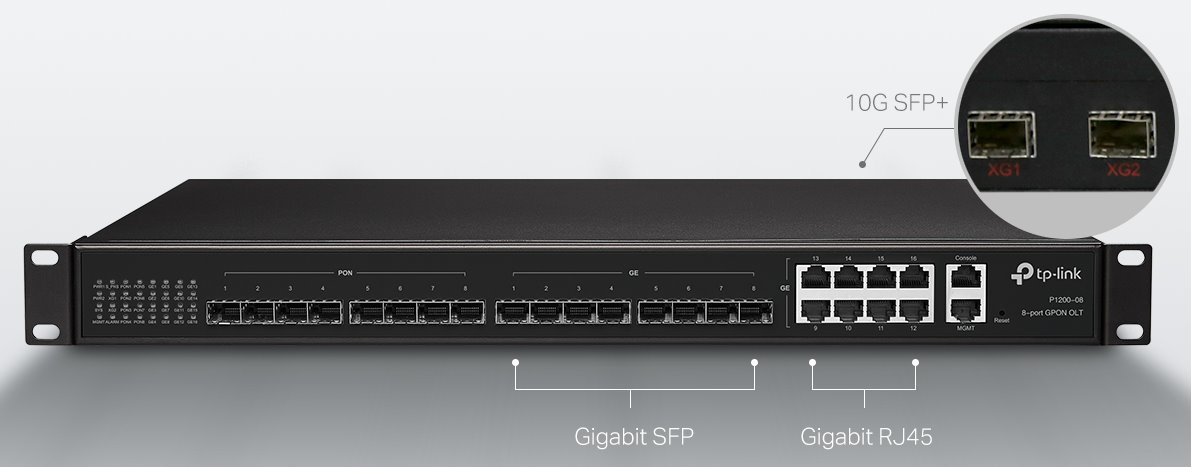

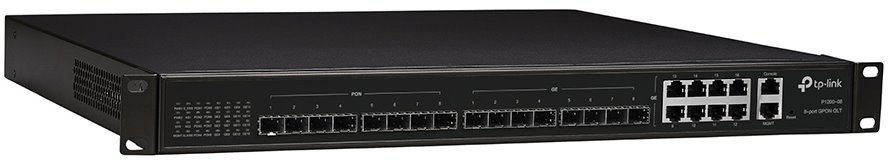

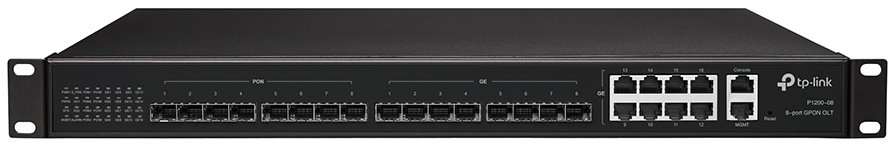

P1201-08 is a GPON OLT unit with eight GPON ports that can handle up to 1024 ONU clients with using 1: 128 splitters not included. In addition to PON ports, the unit also has 8 classic SFP ports with a maximum 1G speed and additional 8 Gigabit RJ-45 ports. On the back side you can find free shaft for special module containing two SFP+ 10Gbps ports (module is not include package).

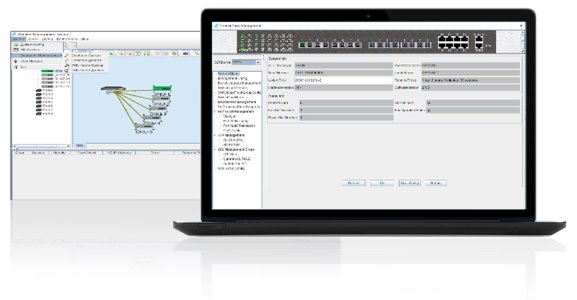

Centralized management
Supports CLI, EMS management modes to facilitate centralized management, improve management efficiency and reduce maintenance costs.

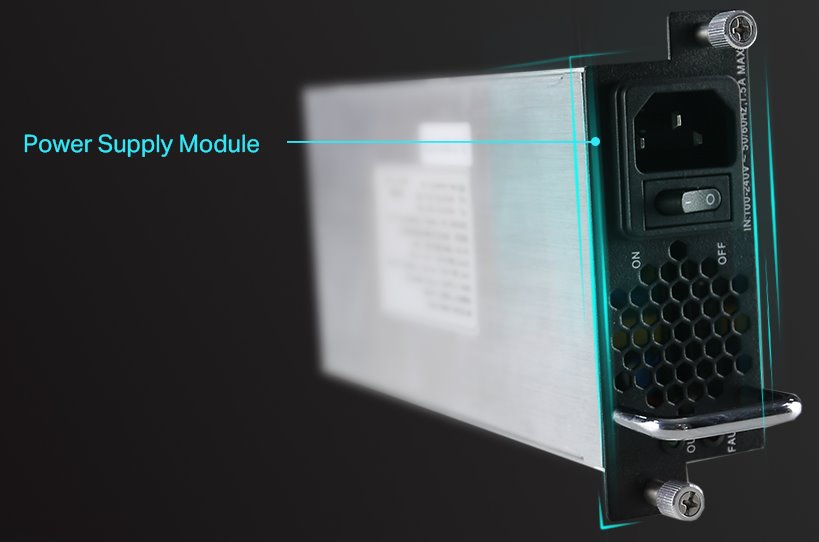

Dual Power Supply
Dual redundant power supply design provides carrier-class reliability, supports AC, DC or mixed power input.
